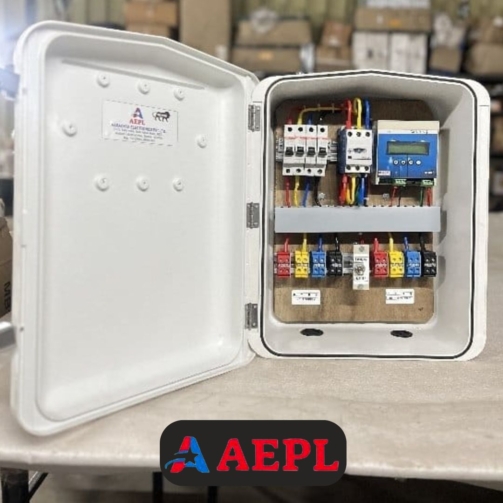

CCMS Street Light Controller – Aaradhya Electronics Pvt Ltd

The CCMS Street Light Controller from Aaradhya Electronics Pvt Ltd is a comprehensive solution designed to optimize the operation, management, and energy efficiency of street lighting systems. It is engineered to provide precise monitoring, remote control, and automated fault detection, ensuring reliable performance and energy savings in smart city and industrial applications.

Key Features:

1. Accuracy Class 1.0: Provides precise power quality measurements for efficient energy management.
2. Plug & Play Operation: Easy installation with plug-in terminals, requiring minimal setup.
3. Data Logging Capability: Stores up to 2 months of operational data for easy analysis and troubleshooting.
4. IP-44 Protection: Rated for dust and water resistance, making it ideal for outdoor installations.
5. 2-Line LCD Display with Backlight: Ensures clear visibility of key parameters and statuses, even in low-light conditions.
6. Real-Time Clock (RTC): Inbuilt clock for accurate timekeeping, ensuring proper scheduling of operations.
7. Automated Sunrise & Sunset Computation: Automatically calculates local sunrise and sunset times for efficient lighting control, customizable based on user needs.
8. Continuous Electrical Monitoring: Provides real-time monitoring of key electrical parameters like KW, KWH, KVA, voltage, current, and power factor (PF).
9. Automatic Protection: Features auto-trip and auto-reset functionality to protect against over-voltage, under-voltage, over-current, load imbalance, single phasing, and frequency faults.
10. Advanced Fault Detection: Inbuilt intelligence to detect faults such as voltage surges, theft alarms, and unbalanced loads.
11. GPRS Interface: Uploads electrical data and faults via RS-232 port and GPRS modem to cloud-based systems for real-time monitoring.
12. Customizable Data Sampling: Configurable data sampling intervals at 15, 30, 45, or 60 minutes to suit various operational needs.
13. Support for Single-phase & Three-phase Systems: Compatible with both single-phase and three-phase installations.
14. GPS Mapping & Tracking: Allows for geographical mapping and tracking of feeder units via Google Maps.
15. Scalable Central Control: Capable of controlling and monitoring between 1000 to 2000 feeder units via a central control system.
16. Optional Battery Backup: Offers 10 to 12 hours of battery backup in case of power failure.
17. GSM with GPRS Support: GSM multislot Class 12 with GPRS coding schemes (CS1, CS2, CS3, CS4) for enhanced connectivity.
18. Streetlight Management Software: Cloud-based software platform for lighting management, featuring group ON/OFF functionality, scheduling, and real-time data retrieval.
19. Twilight Adjustment Feature: Adjustable twilight settings up to 100 minutes forward or reverse with respect to sunrise/sunset times.
20. Comprehensive Reporting: Provides downloadable reports in CSV format for ON/OFF switching events, fault notifications, and daily performance.
21. Power Quality Measurements: Monitors active, reactive, and apparent power, along with voltage and current values.
22. Geolocation for Switching Points: Sends geographical position data of each switching point, which can be visualized on a map.
23. Astronomical Time Synchronization: Capable of independently calculating astronomical times or synchronizing with a web service for accuracy.
24. Light Status Detection: Computes the number of glowing and non-glowing lights by comparing actual measured power with rated power of LED lights.

The CCMS Street Light Controller offers an intelligent, automated solution for efficient streetlight management, reducing operational costs while enhancing reliability and safety. Ideal for smart cities and large industrial estates, this system ensures seamless lighting control with advanced fault detection and remote monitoring capabilities.
